Table Of Content


Stainless Steel Sheet and Plate

Reliant Pipes is an international supplier of stainless steel plate.The sheet plate manufactured in Stainless Steel and Duplex steel, we also manufacture SS coil & plate at our other factory in Vapi, Gujarat. Where we also manufacture stainless steel sheet plate and Stainless steel coil for industries like Oil & Gas, Petrochemicals, Refineries, Thermal, Nuclear sector, Solar Power Plants, Atomic Energy, Defense and Aerospace etc.

We can supply stainless steel sheets and stainless steel plate in type 304, 304L, 316 and 316L in the stock sizes listed below. All stainless steel sheets can be cut to order. Perforated stainless sheets in 304 and 316 from stock. All stainless stock can be delivered mirror polished if required,

If you don’t see what you’re looking for just call one of our team members at +91-22-66310022 Or Mail Us reliant@reliant.in. No inquiry is too large or too small, we specialize in locating hard to find items. If you do see what you are looking, we would love to assist you and give you a quote today!

.

Stainless Steel Sheet Stock List. Call +91-22-66310022 for nationwide delivery.

Stainless Steel Sheets

Stainless Steel Plates

Perforated Stainless Steel Sheets

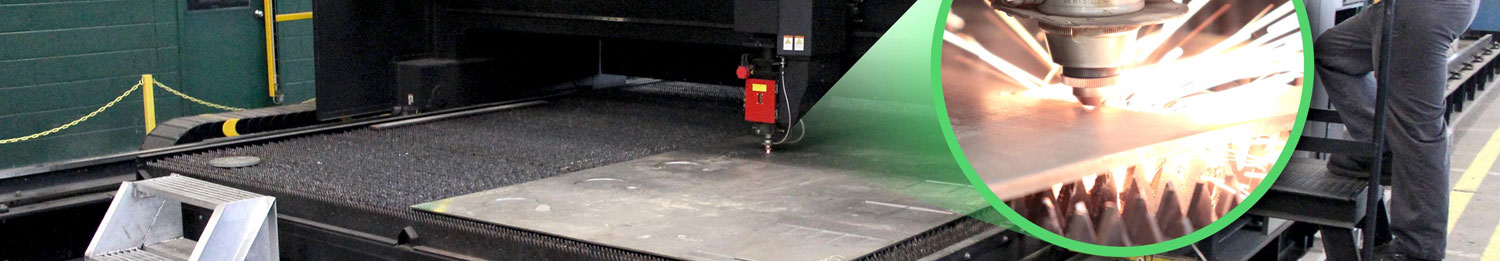

Fabrication

We can also offer fabrication services for our stainless steel stock including drilling and press braking.

Press braking: We can provide specialist handling and cleaning for stainless and duplex steel. State of the art brake presses capable of folding up to 12.5m length and 200m thickness.

Stainless Steel Sheets in type 304 and 316L

Stainless Steel Sheet 304
Polished 240 grit, white poly coat

Size (mm) Weight per
sheet (Kg)
Size (mm) Weight per
sheet (Kg)
2000 x1000 x 0.7 11.5 2500 x 1250 x 1.5 38.4
2500 x1250 x 0.7 17.9 3000 x 1500 x 1.5 55.3
2000 x1000 x 0.9 14.7 2000 x 1000 x 2.0 32.7
2500 x1250 x 0.9 23.0 2500 x 1250 x 2.0 51.2
2000 x1000 x 1.0 16.4 3000 x 1500 x 2.0 73.7
2500 x1250 x 1.0 25.6 2000 x 1000 x 2.5 40.9
3000 x1500 x 1.0 36.8 2500 x 1250 x 2.5 63.9
2000 x1000 x 1.2 19.6 3000 x 1500 x 2.5 92.1
2500 x1250 x 1.2 30.7 2000 x 1000 x 3.0 49.6
3000 x1500 x 1.2 44.2 2500 x 1250 x 3.0 77.5
2000 x1000 x 1.5 24.6 3000 x 1500 x 3.0 112.0

Stainless Steel Sheet 316 (Werkstoff 1.4401)
Polished 240 grit, white poly coat

Size(mm) Weight per
sheet (kg)
Size (mm) Weight
per sheet (kg)
2500 x 1250 x 1.2 30.7 2500 x 1250 x 2.0 51.2
3000 x 1500 x 1.2 44.2 3000 x 1500 x 2.0 73.7
2500 x 1250 x 1.5 38.4 2500 x 1250 x 3.0 77.5
3000 x 1500 x 1.5 55.3 3000 x 1500 x 3.0 112.0

Stainless Steel Sheet type 304
2B Finish

Size Weight per Size Weight per
(mm) sheet (Kg) (mm) sheet (Kg)
2000 x 1000 x 0.5 8.2 3000 x 1500 x 1.2 44.2
2500 x 1250 x 0.5 12.8 2000 x 1000 x 1.5 24.6
2000 x 1000 x 0.7 11.5 2500 x 1250 x 1.5 38.4
2500 x 1250 x 0.7 17.9 3000 x 1500 x 1.5 55.3
2000 x 1000 x 0.8 13.1 2000 x 1000 x 2.0 32.7
2500 x 1250 x 0.8 20.5 2500 x 1250 x 2.0 51.2
2000 x 1000 x 0.9 14.7 3000 x 1500 x 2.0 73.7
2500 x 1250 x 0.9 23.0 2000 x 1000 x 2.5 40.9
3000 x 1500 x 0.9 33.2 2500 x 1250 x 2.5 63.9
2000 x 1000 x 1.0 16.4 3000 x 1500 x 2.5 92.1
2500 x 1250 x 1.0 25.6 2000 x 1000 x 3.0 49.6
3000 x 1500 x 1.0 36.8 2500 x 1250 x 3.0 77.5
2000 x 1000 x 1.2 19.6 3000 x 1500 x 3.0 112.0
2500 x 1250 x 1.2 30.7

Stainless Steel Sheet type 316
2B Finish

Size (mm) Weight per
sheet (kg)
Size (mm) Weight per
sheet (kg)
2000 x1000 x0.7 11.5 3000 x1500 x1.5 55.3
2500 x1250 x0.7 17.9 2000 x1000 x2.0 32.7
2000 x1000 x0.9 14.7 2500 x1250 x2.0 51.2
2500 x1250 x0.9 23.0 3000 x1500 x2.0 73.7
2500 x1250 x1.0 25.6 2000 x1000 x2.5 40.9
2000 x1000 x1.2 19.6 2500 x1250 x2.5 63.9
2500 x1250 x1.2 30.7 3000 x1500 x2.5 92.1
3000 x1500 x1.2 44.2 2000 x1000 x3.0 49.6
2000 x1000 x1.5 24.6 2500 x1250 x3.0 77.5
2500 x1250 x1.5 38.4 3000 x1500 x3.0 112.0

Stainless Steel Sheet 304
2R (BA) Finish

Size(mm) Weight per
sheet (kg)
Size(mm) Weight per
sheet (kg)
2000 x1000 x0.5 8.2 2500 x1250 x1.0 25.6
2500 x1250 x0.5 12.8 2000 x1000 x1.2 19.6
2000 x1000 x0.7 11.5 2500 x1250 x1.2 30.7
2500 x1250 x0.7 17.9 2000 x1000 x1.5 24.6
2500 x1250 x0.8 20.5 2500 x1250 x1.5 38.4
2000 x1000 x0.9 14.7 2000 x1000 x2.0 32.7
2500 x1250 x0.9 23.0 2500 x1250 x2.0 51.2
2000 x1000 x1.0 16.4

Stainless Steel Plate in type 304, 304L, 316 and 316L

Stainless Steel Plate 304L and 316L
Cold Rolled Descaled ASTM A240, ASME SA 240 TYPE 304L AND 316L

Size (mm) Weight per
plate (Kg)
Size(mm) Weight per
plate (Kg)
4000 x 2000 x 2.0 136.0 3000 x 1500 x 5.0 191.0
4000 x 2000 x 3.0 204.0 4000 x 2000 x 5.0 340.0
2500 x 1250 x 4.0 106.0 2500 x 1250 x 6.0 159.0
3000 x 1500 x 4.0 153.0 3000 x 1500 x 6.0 230.0
4000 x 2000 x 4.0 272.0 4000 x 2000 x 6.0 408.0
2500 x 1250 x 5.0 133.0

CPP Plate 1D Finish ASTM A240, ASME SA240: 304, 304L, 316, 316L
EN 10088-2: 1.4301, 1.4307, 1.4401, 1.4404

Size
(mm)
Weight per
plate (kg)
Size
(mm)
Weight per
plate (kg)
2000 x 1000 x 3.0 51.0 4000 x 2000 x 6.0 408.0
2500 x 1250 x 3.0 79.7 2500 x 1250 x 8.0 213.0
3000 x 1500 x 3.0 115.0 3000 x 1500 x 8.0 306.0
2000 x 1000 x 4.0 68.0 4000 x 2000 x 8.0 544.0
2500 x 1250 x 4.0 106.0 2500 x 1250 x 10.0 266.0
3000 x 1500 x 4.0 153.0 3000 x 1500 x 10.0 383.0
2000 x 1000 x 5.0 85.0 4000 x 1500 x 10.0 510.0
2500 x 1250 x 5.0 133.0 4000 x 2000 x 10.0 680.0
3000 x 1500 x 5.0 191.0 2500 x 1250 x 12.0 319.0
4000 x 2000 x 5.0 340.0 3000 x 1500 x 12.0 459.0
2000 x 1000 x 6.0 102.0 4000 x 1500 x 12.0 612.0
2500 x 1250 x 6.0 159.0 4000 x 2000 x 12.0 816.0
3000 x 1500 x 6.0 230.0

Stainless Steel Treadplate AISI 304, Dual Certified to DIN 59220 (T) & ASTM A793/96 Pattern 1

Thickness on base (mm) Unit Weight per plate (kg)
3000 x1000 x3.0 78.0
3000 x1250 x4.5 143.0
3000 x1250 x6.0 180.0
3000 x1250 x8.0 210.0

Steel Express can supply stainless steel steel and plate in AISI/SAE, DIN, Werkstoff grades or equivalents:

BS 970 1991 AISI/SAE Werkstoff
304S11 304L 1.4306
304S15 304 1.4301
316S11 316L 1.4404
316S13 316L 1.4435
316S31 316 1.4401
316S33 316 1.4436

ASTM A480 Plate Thickness & Flatness Tolerances

Tolerance below apply to the following alloys:
RA 253 MA, RA330, RA333, ZERON 100, AL-6XN, 304, 309, 316, 321, 347, 410, 446, 2205, 2507, 2101, 17-4, 15-5, 800
Tolerances listed were taken from ASTM A480 (Reference Only)

Table A2.17 Permitted Variation in Thickness of Hot-Rolled Mill Plate (Quarto Plate)*, **

Width (w), in. [mm]
Specified Thickness (t), in. [mm] w ≤ 84 [2134] 84 [2134] < w ≤ 120 [3048] 120 [3048] < w ≤ 144 [3658] w > 144 [ 3658]
  Tolerance Over Specified Thickness, *** in. [mm]
t < 3/16 [4.76] 0.055 [1.35] 0.070 [1.78] -- --
3/16 [4.76] ≤ t < 3/8 [9.52] 0.045 [1.14] 0.050 [1.27] 0.085 [2.16] --
3/8 [9.52] ≤ t < 3/4 [19.05] 0.055 [1.40] 0.060 [1.52] 0.085 [2.16] 0.090 [2.29]
3/4 [19.05] ≤ t < 1 [25.04] 0.060 [1.52] 0.065 [1.65] 0.085 [2.16] 0.100 [2.54]
1 [25.40] ≤ t < 2 [50.80] 0.070 [1.78] 0.075 [1.90] 0.095[2.41] 0.115 [2.92]
2 [ 50.80] ≤ t < 3 [76.20] 0.125 [3.20] 0.150[3.80] 0.175 [4.45] 0.200 [5.08]
3 [76.20] ≤ t < 4 [101.6] 0.150 [3.81] 0.160 [4.06] 0.200 [5.08] 0.225 [5.72]
4 [101.6] ≤ t < 6 [152.4] 0.180 [4.75] 0.200 [5.08] 0.335 [8.50] 0.355 [9.02]
6 [152.4] ≤ t < 8 [203.2] 0.235 [6.00] 0.255 [6.48] 0.355 [9.02] 0.435 [11.0]
8 [203.2] ≤ t < 10 [254.0] 0.315 [8.00] 0.335 [8.50] 0.435 [11.0] 0.550 [14.0]

* Thickness is measured along the longitudinal edges of the plate at least 3/8 in. [9.52mm], but not more than 3 in. [76.20 mm], from the edge.

** For plates up to 10 in. [254.0mm], excl, in thickness, the tolerance under the specified thickness is 0.010 in. [0.25 mm].

*** For circles, the over thickness tolerances in this table apply to the diameter of the circle corresponding to the width ranges shown. For plates of irregular shape, the over thickness tolerances apply to the greatest width corresponding to the width ranges shown.

Below is the Tolerance for Flatness taken from ASTM A480
(Understand that this covers Mill Plates and not cut pieces)

Table A2.20 Permitted Variations in Flatness of Plate Mill Plate (Quarto Plate)

Note 1 — Tolerances in this table apply to any length, not necessarily the rolling direction, up to 36 in. [914mm] and to any 36 in. [914mm] of longer lengths in the plane of the plate measured while the plate rests on a flat surface with the concavity of the curvature upward.

Note 2 — If the longer dimension is under 36 in. [914mm], the tolerance is not greater than 1/4 in. [6.4mm].

Note 3 — for plates with specified minimum yield strengths of 35 ksi [240MPa] or more, the permitted variations are increased to 1 1/2 times the amounts shown.

Specified Thickness (t), in. [mm] Flatness Tolerance for Thicknesses Given, in. [mm]
t < 1/4 [6.35] 7/16 [11]
1/4 [6.35] ≤ t < 3/8 [9.52] 3/8 [9.5]
3/8 [9.52] ≤ t < 1/2 [12.70] 5/16 [7.9]
1/2 [12.70] ≤ t < 3/4 [19.05] 5/16 [7.9]
3/4 [19.05] ≤ t < 1 [25.40] 5/16 [7.9]
1 [25.40] ≤ t < 1 1/2 [38.10] 1/4 [6.4]
1 1/2 [38.10] ≤ t < 4 [101.60] 1/4 [6.4]
t ≥ 4 [101.60] 1/4 [6.4]

Tolerances to ISO 18286 for hot rolled stainless steel quarto plates

General

This standard covers hot rolled stainless steel plates rolled on a reversing mill known as quarto plate. It may also be taken to cover plate rolled on a Steckel mill but taken out of the process before coiling has begun.

For continously hot rolled plate (CPP), ISO 9444 is applicable.

It replaces EN 10029 which was not specifically for stainless steel. It removes some anomalies and ambiguities from that standard.

One interpretation of the standard is that no ground area of the plate may fall below the minimum thickness tolerance. This is in contrast to EN 10163 which was referred to in EN 10029 and allowed some areas to be below minimum thickness.

The 4 Classes of thickness tolerance (A-D) in EN 10029 have been replaced by one class which is similar to Class B - minimum tolerance of 0.3mm under nominal thickness.

There are no tolerances on the maximum difference allowed within a plate.

The flatness tolerance is dependent on grade.

Provision is made for different width and length tolerances depending on the method of cutting.

Thickness

The tolerance under nominal thickness is 0.3mm.

Tolerance on thickness for hot rolled quarto plate
Nominal thickness t Width w
w < 2100 2100 < w < 3000 3000 < w < 3600 > 3600
          t <   10 +1.15 +1.30 +2.15 ---
  10 < t <   20 +1.40 +1.55 +2.15 +2.30
  20 < t <   25 +1.55 +1.65 +2.15 +2.55
  25 < t <   50 +1.80 +1.90 +2.40 +2.95
  50 < t <   75 +2.55 +2.75 +2.95 +3.15
  75 < t < 100 +2.75 +2.95 +3.15 +3.35
100 < t < 150 +2.95 +3.15 +3.35 +3.55
150 < t < 200 +3.35 +3.55 +3.75 +3.95
200 < t < 250 +3.75 +3.95 +4.15 +4.35
  1. It is not possible to make an exact comparison with EN 10029 as the thickness bands are different. However, the following comparison of some typical thicknesses gives an idea:
    Tolerances on thickness for typical plate sizes in EN 10029 and ISO 18286
    Thickness Width EN 10029 Class B ISO 18286
    5 2000 +1.2 +1.15
    5 3000 +1.2 +2.15
    10 2000 +1.4 +1.40
    10 3000 +1.4 +2.15
    30 2000 +1.9 +1.80
    30 3000 +1.9 +2.40
    50 2000 +2.5 +2.55
    50 3000 +2.5 +2.95
    100 2000 +2.9 +2.95
    100 3000 +2.9 +3.35

    In general, wider plate has more generous tolerances than in EN 10029.

  2. For plates with trimmed edges, the thickness shall be measured at any point > 10mm and < 75mm from a longitudinal edge.

Width and length tolerance

There are 3 classes of tolerance for width and length for plates with trimmed edges A - C. This is dependent on the method of cutting the plates.

Class A - cutting method not specified. By implication includes shearing.

Class B - flame-cut plate. Probably intended to mean plasma.

Class C - abrasive cut plate. Probably intended to mean water-jet cutting.

There is no mention of other cutting methods such as laser.

Tolerances on mill edge plate shall be agreed at the time of enquiry and order.

Tolerances on width for class A
Nominal width w   Tolerances
lower upper
  600 < w < 2000 0 +15
2000 < w < 3000 0 +20
> 3000 0 +25
Tolerances on length for class A
Nominal length L Tolerances
lower upper
   600 < L <   4000 0 +  20
  4000 < L <   6000 0 +  30
  6000 < L <   8000 0 +  40
  8000 < L < 10000 0 +  50
10000 < L < 15000 0 +  75
15000 < L < 20000 0 +100

 Tolerances on plates with a nominal length of > 20000mm shall be agreed at the time of enquiry and order.

Tolerances on width and length for Class B
Nominal thickness t Tolerances
lower upper
< 50 0 +10
50 < t < 75 0 +13
75 < t < 150 0 +19
Tolerances on width and length for Class C
Nominal thickness t Tolerances
lower upper
<   25 3.2 3.2
25 < t <   50 3.2 4.8
50 < t <   75 3.2 6.4
75 < t < 100 3.2 7.9
  1. For plates of thickness > 100mm width and length tolerance for Class C must be agreed at the time of the enquiry and order.

 Edge camber and out of squareness

For plate with trimmed edges, the edge camber shall not exceed 0.5% of the nominal length of the plate. Out of squareness shall not exceed 1% of the nominal width of the plate. For comparison, EN 10029 has an edge camber of 0.2% and out of squareness of 1%.

For plate with untrimmed edges in the enquiry and in the purchase order, the edge camber and out of squareness shall be limited so that it is possible to inscribe a rectangle of the nominal length and width of the ordered plate within the delivered size. In EN 10029, the inscribed rectangle definition was not restricted to plates with untrimmed edges.

Flatness

There are two levels of tolerance normal (Class N) and special (Class S). The class shall be specified at the time of enquiry and order. If not specified, the manufacturer can supply to either class.

For both classes the tolerance is dependent on the steel type:

Type A - All grades not of type B

Type B - stainless steel grades with Ni > 20% OR Mo > 2% or N > 0.11%.

Flatness tolerance Class N
Nominal thickness t Steel Type A Steel Type B
Measuring length
1000 2000 1000 2000
  4 < t < 5 9 14  12  17
  5 < t < 8 8 12  11  15
  8 < t < 15 10  10  14
15 < t < 25 7 10 10 13
25 < t < 40 6 9 12
40 < t < 250 5 11
  1. Unless otherwise specified, the measuring length is at the manufacturer's discretion.
  2. If the distance between the points of contact of the straight edge and plate is < 1000mm, the deviation shall comply with the following:

    Steel Type A - Maximum of 1% of the distance between the points of contact between > 300mm and < 1000mm.

    Steel Type B - Maximum of 1.5% of the distance between the points of contact between > 300mm and < 1000mm.

    but not exceeding the values in the table for Class N.

Flatness tolerance Class S
Nominal thickness t Steel Type A Steel type B
Width < 2750 Width> 2750
Measuring length
1000 2000 1000 2000 1000 2000
3 < t < 8 4 10  Shall be agreed at time of enquiry and order
8 < t < 250 3
  1.  Unless otherwise specified, the measuring length is at the manufacturer's discretion.
  2. If the distance between the points of contact of the straight edge and plate is < 1000mm, the deviation shall comply with the following:
    Maximum of 0.5% of the distance between the points of contact but not exceeding the values in the table for Class S. (By implication, this note applies to steel type A since for steel type B, tolerances are agreed at the time of enquiry and order. However, the standard is somewhat unclear. It is also not clear why the 300mm minimum length does not apply for class S as compared with class N).

It is quite difficult to compare the flatness tolerances in EN 10029 and ISO 18286, as the definition of steel types is totally different. In EN 10029 which was for all steels, steel types were L and H split by yield strength above and below 460 N/mm2. This meant that most stainless steels fell into steel type L. Even the nitrogen strengthened steels were in this type. Therefore, 304 and 316 were given the same flatness tolerance. The effect of the new standard is to put Mo and N bearing steels into the steel type B and therefore giving  less stringent flatness tolerances than previously.

An approximate comparison is shown in the following table for a 10mm plate in various grades of steel using the 2000mm measuring length:

Comparison of flatness Class N EN 10029 and ISO 18286
Steel grade Tolerance EN 10029 Tolerance ISO 18286
1.4003 (3CR12) 11 10
1.4028 (420) 14 10
1.4301 (304) 11 10
1.4362 (2304) 11 10/14? (N is 0.05/0.020%)
1.4401 (316) 11 14
1.4410 (2507) 14 14
1.4462 (2205) 14 14
1.4501 (Zeron 100) 14 14
1.4542 (17-4 PH) 14 11
1.4547 (254SMO) 11 14
1.4845 (310) 11 14

It can be argued that neither standard is completely consistent on this subject. For example, martensitic grades in the quench and tempered condition or high yield strength PH grades are expected to have a better flatness than 316. This may not be realistic.




We Export to: We Import to:
People Also Search :

Online Inquiry Form

stainless steel plate supplier in singapore, stainless steel plate suppliers uk, stainless steel plate supplier in penang, stainless steel plate supplier philippines, stainless steel plate supplier malaysia, stainless steel plate suppliers in uae, stainless steel plate supplier in johor bahru, stainless steel plate suppliers in coimbatore, stainless steel plate suppliers gauteng

stainless steel sheet suppliers in ahmedabad, stainless steel plate astm, stainless steel plate adelaide, stainless steel plate suppliers, stainless steel sheet suppliers brisbane, stainless steel sheet suppliers birmingham, stainless steel sheet suppliers bristol, stainless steel sheet suppliers in bangalore, stainless steel plate bunnings, stainless steel plate bbq
stainless steel plate singapore, uk, stainless steel plate suppliers south africa, stainless steel plate supplier, penang, philippines, malaysia, uae, johor bahru, coimbatore, gauteng, south africa, stainless steel sheet in ahmedabad, astm, adelaide, stainless steel sheet brisbane, stainless steel sheet birmingham, stainless steel sheet bristol, stainless steel sheet in bangalore, bunnings, bbq, brisbane, bending, bending radius, china, cape town, canada, manufacturers china, stainless steel sheet cape town, density, drainer, dimensions, distributors
